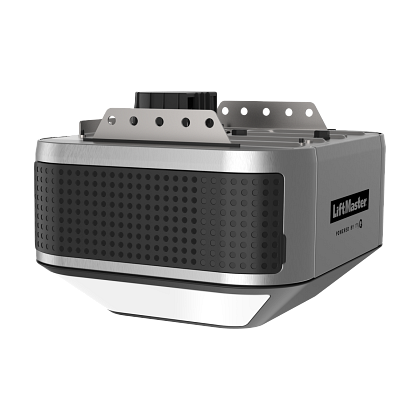

LiftMaster 84504R

Built-in Camera
• 1300 wide angle camera that lets you monitor the garage through a live feed recorded event through the myQ® app
• Receive alerts and recordings in 1080p full HD video when motion is detected
• High Dynamic Range and Night Vision for greater image quality in high/low light environments
• Garage Climate Performance includes extreme climate operating range of -13 to 1310F

Smartphone Control
Control, secure and monitor the garage with the myQ app-anytime, from anywhere

Battery Backup
Lets you get in and out when the power is down

2-way communication
Hear what’s happening in the garage. Includes adjustable volume and ability to enable or disable the mic through the myQ app

Quiet operation
An ultra-quiet DC motor and strong belt drive system ensures for comfortable living spaces near the garage

myQ Diagnostics Compatible
myQ Diagnostics in the myQ app provides real-time insights for your garage door via the Health Report.
You will be sent alerts if an issue arises and you will be quickly connected to professional services if needed

Works with Amazon Key and Walmart+InHome
For convenient and secure In-Garage Delivery of Amazon and Walmart packages and groceries – watch deliveries happen in real-time

Motor
12V DC, 53 RPM, automatic thermal protection

Mechanics
▪ Steel chassis, T-rail and trolley, full reinforced belt drive mechanism (63:1 gear reduction and adjustable door arm)
▪ Auto-force adjustment for changing weather and environmental conditions
▪ Electronic limits for easy setup
▪ DC Wi-Fi logic board with built-in surge suppressor (for replacement logic boards, order part 050DCTBFMC)

Power
120V AC, 60 Hz voltage, 6A current rating, UL Listed, 4' power cord (3-prong)

Speed
7.2" per second upward, 7.2" per second downward

Lighting

Dual light lens LED - 1,500 lumens

Dimensions
Opener head: 10.5" L x 12.72" W x 8.185" H
Note: when both decorative doors are open,
the width of the opener is 30".

Headroom clearance required: 2''

Mounting
Side-to-Side

Warranties
Lifetime: Motor and Belt
1 Year: Parts, Camera, Accessories and LED

Security+ 2.0
Radio controls:
Operating range ~200'; Operating temperature:
-40F to 150F; 3-Button Remote Control (893LM), Remote Control Code Format: Security+2.0, premium remote control; Garage Door Opener Code Format: Security+2.0; Anti-burglary coding.
Encrypted controls:
Multi-Function Control Panel (882LMW); Program remote controls, maintenance alert system, easy Wi-Fi set up.

myQ Radio
902-928 MHz 50-Channel FHSS (frequently hopping spread spectrum); Provides 2-way communication from garage door opener and myQ accessories; Enables monitoring and control of garage door openers via smartphone or tablet.
